Rail Wheelset Washing Plant - Ultramax Hydrojet Pvt Ltd - Manufacturer In Industrial Cleaning System Systems

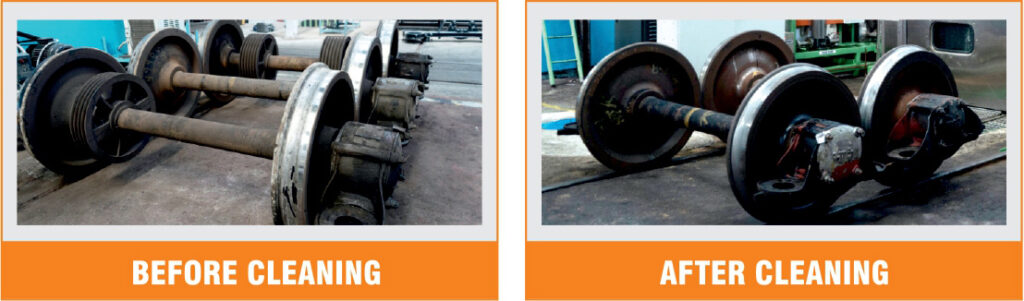

We offer Complete rail wheel set washing plant with Automatic process which removes all kinds of grease and all other contaminations such as brake dust, soiling encrustationsetc in the locomotive car wheel sets.

Scope of Machine

Process : Automated Cleaning process consisting of Spray Washing & Fresh Water Rinsing
Customers : Railway, Passenger car, Transit car, Metros & Passenger car Rebuilt plants
Work piece : wheelset of all sizes, passenger car, Transit car, Metros
Application : Cleaning of wheel set prior to inspection/Rebuild
Cleanliness : Meets the cleanliness specifications as per customer requirements
Productivity : Cleans up to 40 wheel set @ 8 hrs shift operation

Key Features of Machine

Standard Recirculated wash solution process followed by Fresh water Rinse (or) Recirculated rinse.
Large Tank capacity for wash solution to increase the time changeover of washing solution & to reduce solution foaming
High pressure & high volume pump which covers entire parts of wheel set by washing solution effectively
Automated loading & unloading mechanism for handling the wheel set in & out of the washing spray cabinet
Automatic motorized doors on both sides of the cabinet for smooth operation
Construction of solution tank & spray cabinet by corrosion resistant material of Stainless steel (SS 304)
Exhaust blower is provided to exhaust the vapour / fumes from the cabinet inside during operation
Washing cabinet & tanks are insulated to minimize the heat loss
Automatic sludge removal system to remove the sludge accumulating in the wash tanks regularly which increases the tank cleanout extended its life
Automatic oil separator to remove the oil suspended particles from wash solution tank to extend solution life
Heating of wash solution choice by Electric, steam, Gas or hot water by choice of customer
