Automatic Bogie Cleaning Plant - Ultramax Hydrojet Pvt Ltd - Manufacturer In Industrial Cleaning System Systems

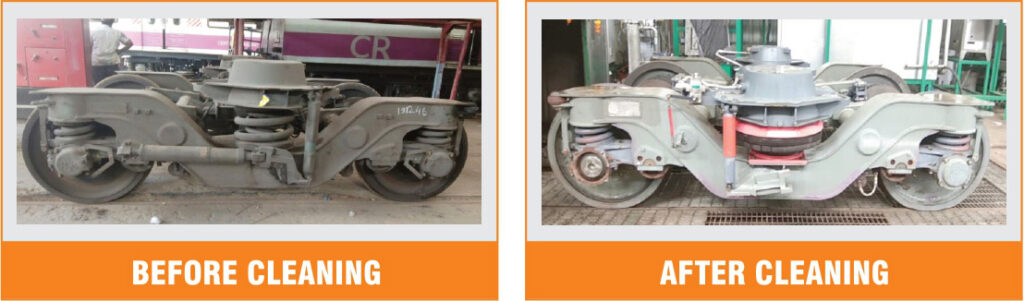

We offer Complete Bogie cleaning plant (Rail feed Type) for Locomotive, Passenger & Transit Car (wagon) Bogies on turnkey basis with complete Automatic process which removes all kinds of exterior contaminations in the bogies that includes primary & secondary coil spring, axle box, wheel sets and all other accessories in the Bogie shop.

Scope of Machine

Process : Automated Cleaning process consisting of Spray Washing & Fresh Water Rinsing
Customers: Railway, Passenger car , Transit car, Metros & Passenger car Rebuilt plants
Work piece: Bogies of all sizes, passenger car, Transit car , Metros (with Traction motor & without Traction Motor)
Application: Cleaning of Bogies prior to inspection/Rebuild
Cleanliness: Meets the cleanliness specifications as per customer requirements
Productivity: Cleans up to 8 to 12 bogies @ 8 hrs shift operation

Key Features of Machine

Standard Recirculated wash solution process followed by Fresh water Rinse (or) Recirculated rinse.
Large Tank capacity for wash solution to increase the time change over of washing solution & to reduce solution foaming
High pressure & high volume pump which covers entire parts of bogie by washing solution effectively
High capacity Automated loading & unloading mechanism for handling the bogies in & out of the washing spray cabinet
Automatic motorized doors on both sides of the cabinet for smooth operation
Construction of solution tank & spray cabinet by corrosion resistant material of Stainless steel (SS 304).
Exhaust blower is provided to exhaust the vapor /fumes from the cabinet inside during operation
Washing cabinet & tanks are insulated to minimize the heat loss
Automatic sludge removal system to remove the sludge accumulating in the wash tanks regularly which increases the tank clean out extended life
Automatic oil separator to remove the oil suspended particles from wash solution tank to extends solution life
Trolley will be provided for handling the bogie frame & bogie components for cleaning
Heating of wash solution choice by Electric, steam, Gas or hot water by choice of customer
